A537 Class 1

Stockists of ASME SA537 Class 1 Carbon Steel Plates in Vadodara, A537 CL. 1 Boiler Plate, ASME SA537 Class 1 Plate Supplier in Bangalore, ASTM A537 Class 1 Pressure Vessel Plates STOCKIST and SUPPLIERS in Maharashtra , Chhattisgarh , Kerala , Telangana , Gujarat ,Rajasthan , Madhya Pradesh , Uttar Pradesh , Tamil Nadu ,Kolkata,Karnataka India .We Also Export International China,Canada,Mexico,Japan,Germany,Italy,Brazil,Dubai,Saudi etc.

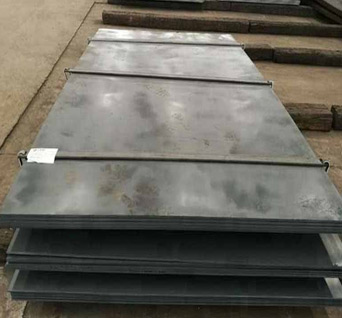

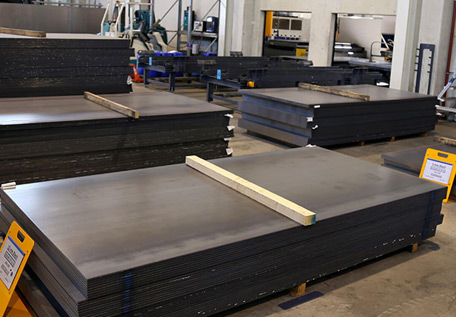

A537 Class 1 Plates are best for constructing pressure vessels

If you are seeking the best plate for constructing pressure vessel then consider A537 Class 1 Plate. These plates are ideal for constructing pressure vessels and fabrication of tank. These are most popular plate amongst engineers. These plates are best known for its ultimate strength, which makes it excellent for industrial purpose. These are best for your industrial and engineering purposes.

On the other hand, these plates are used in constructing of boilers and pressurized tanks. A537 Class 1 Plates are completely designed for working in extreme environments. Well, these are best used in chemical applications where any other plates fail. These plates offer exceptional performances at corrosive environments. It has the feature to bear high pressure and temperatures without deforming.

Thickness of plates varies from 8-100 mm and width 1500-3500 mm. length is between 3000-18000 mm you can use it as per your requirement. These plates are manufactured with the composition of ideal metals, which has tendency to bear extreme pressures. It offers minimum elongation at extreme yield and tensile stress.

Advantages of A537 Class 1 Plates

• » These plates offers great resistivity to corrosion
• » Any chance of leakages are negligible
• » Tendency to bear maximum pressure with minimum elongation
• » Increase the service of pressure vessels
• » Improves the surface finish of vessels
• » There is no chance of reaction inside the container
• » Provides the maximum strength to pressure vessels
• » Made to work at Low Temperature Services Up to Minus 46 Degree.

Certifications and testing of A537 Class 1 Plates
This plates are certified as per EN 10204 3.1B Certifications & Dimensions and Tolerances as per SA 20. Majorly used for Refineries and Petrochemicals can be Supplied as per Customer requirement. After manufacturing these plates goes through strict quality assurance test done by experienced workers. So, these plates satisfied the customer expectations.

Packaging and transportation of A537 Class 1 Plates
These plates packed in straight plates so that these are easily export from one place to another. At the time of exporting manufactures especially care about the surface finish. It will assure the product you get has excellent finish and according to the customer expectations.

A537 Class 1 Plates has outstanding features for bearing the maximum pressure. Hence, these are safe plates for your engineering works. Most of the other plates fail due to ultimate pressure intensity. Well using these plates accidents or any unwanted should reduced. Surface finish and precise dimension makes it suitable for pressurized reactors. Another advantage is these plates do not react with any other compound. You can trust these plates for long-term performances of your pressure vessels. These plates are best value for money you can buy in most reasonable prices. Consider these plates for best quality engineering works.

A537 Class 1 Plate specification:

Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering: Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for Boilers and Pressure Vessels Application.
Process of Manufacturing : Hot-Rolled (HR)

A537 Class 1 Plate Equivalent Standard:

Steel Grade	JIS	Germany
ASTM/ASME	G3115	DIN17155
A537 / SA537	SPV36	19Mn5

A537 Class 1 Plate Chemical Composition:

C	Mn		P	S	Si	Cr	Cu	Ni	Mo
	≤ 40 mm	> 40 mm
0.24 max	0.70/1.35	1.00/1.60	0.035	0.035	0.15/0.50	0.025	0.35	0.25	0.080

A537 Class 1 Plate Mechanical Properties:

Grade	Heat Treatment	Yield (MPa)	Tensile (MPa)	Elongation		Thickness
				A50mm	A200mm
SA537 Class 1	Normalized	345	485/620	22%	18%	≤ 65
		310	450/585	22%	18%	> 65 ≤ 100
