Mipra Steel

Mipra Steel is one of the most leading Carbon Steel Tee Fittings Manufacturers, STOCKIST and SUPPLIERS in Maharashtra , Chhattisgarh , Kerala , Telangana , Gujarat ,Rajasthan , Madhya Pradesh , Uttar Pradesh , Tamil Nadu ,Kolkata,Karnataka India
.We Also Export International China,Canada,Mexico,Japan,Germany,Italy,Brazil,Dubai,Saudi etc. .

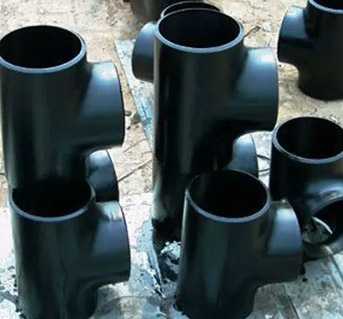

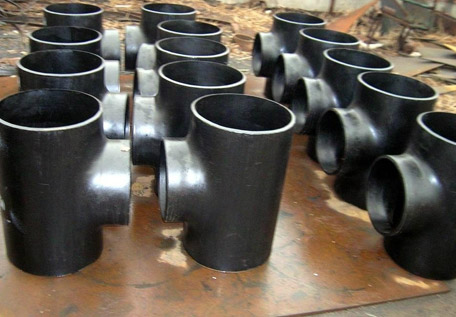

Tee is a type of carbon steel fitting used for Piping connection in all industrial plants such as Oil & Gas, Petrochemical etc. All ASTM A234 gr WPB tee, SA234 Grade WPB Pipe Reducing Tee, ASTM A234 WPB Barred Tee & ASTM A234 WPB Carbon Steel equal tees are produced from European sourced raw material at Mipra Steel. We offer these ASTM A234 Wpb Tee in sizes 6”nb to 40”nb and thicknesses 5mm to 35mm. All Tee ASTM A234 Gr Wpb are manufactured from plate, pressed in two halves with three weld seams. We offer 100% radiography on all ASTM A234 Tee welds as standard.

ASTM A234 WPB Tee Specification

ASTM A234 Gr WPB Pipe Tee size	CS ASTM A234 Seamless Pipe Tee: 1/2" - 10" CS ASTM A234 gr WPB Welded Pipe Tee: 1/2" - 48"
A234 Grade WPB Tee Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Carbon Steel sch 40 A234 Pipe Tee Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
CS ASTM A234 Tee Types	CS ASTM A234 gr WPB Butt Weld Pipe Tee CS A234 Seamless Tee Carbon Steel ASTM A234 WPB ERW Tee ASTM A234 Gr WPB Welded Tee A234 Grade WPB Fabricated Pipe Tee CS ASTM A234 gr WPB Bevel Ends Tee CS ASTM A234 gr WPB Pipe Tee
ASTM A234 WPB Carbon Steel Tee Type	DN15-DN1200
Grade WPB Pipe Tee	Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
CS ASTM A234 Pipe Tee Manufacturing process	Push, Press, Forge, Cast, etc.
Surface treatment	Sand blasting, Sand Rolling, Sand Blasting
ASTM A234 WPB Carbon Steel Buttweld Pipe Tee Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
CS ASTM A234 WPB Pipe Tee Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Grade WPB Tees	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application & uses of Industrial CS A234 WPB Pipe Tee	Used in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Schedule 10 Pipe Tee are an economical alternative for lower-pressure applications. Schedule 40 Pipe Tee have a thicker wall for higher-pressure applications.
How To Order	ELBOW 90DEG BW Schedule 10 ASTM A234 WPB Tee, ASME B16.9 ELBOW 90DEG BW Schedule 20 ASTM A234 WPB Tee, ASME B16.9 ELBOW 90DEG BW Schedule 40 ASTM A234 WPB Tee, ASME B16.9 ELBOW 90DEG BW Schedule 80 ASTM A234 WPB Tee, ASME B16.9 ELBOW 90DEG BW Schedule 120 ASTM A234 WPB Tee, ASME B16.9 ELBOW 90DEG BW Schedule 160 ASTM A234 WPB Tee, ASME B16.9

ASTM A234 WPB Pipe Tee Chemical Composition

The common used carbon steel grades are ASTM A234 WPB and A420 WPL6 For low temperature service.

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	Cu	V	Nb
WPB	0.3	0.29-1.06	0.05	0.058	0.1min	0.4	0.15	0.4	0.4	0.08	0.02
WPC	0.35	0.29-1.06	0.05	0.058	0.1min	0.4	0.15	0.4	0.4	0.08	0.02
WP11 CL1	0.05-0.15	0.30-0.60	0.03	0.03	0.50-1.00	1.00-1.50	0.44-0.65	-	-	-	-
WP11 CL2/3	0.05-0.20	0.30-0.80	0.04	0.04	0.50-1.00	1.00-1.50	0.44-0.65	-	-	-	-

ASTM A234 WPB Tee Mechanical Properties

Tensile Requirements	WPB	WPC, WP11CL2	WP11CL1	WP11CL3
Tensile Strength, min, ksi[MPa]	60-85	70-95	60-85	75-100
(0.2% offset or 0.5% extension-under-load)	[415-585]	[485-655]	[415-585]	[520-690]
Yield Strength, min, ksi[MPa]	32	40	30	45
Yield Strength, min, ksi[MPa]	[240]	[275]	[205]	[310]
